SKU PS-48/12 Category

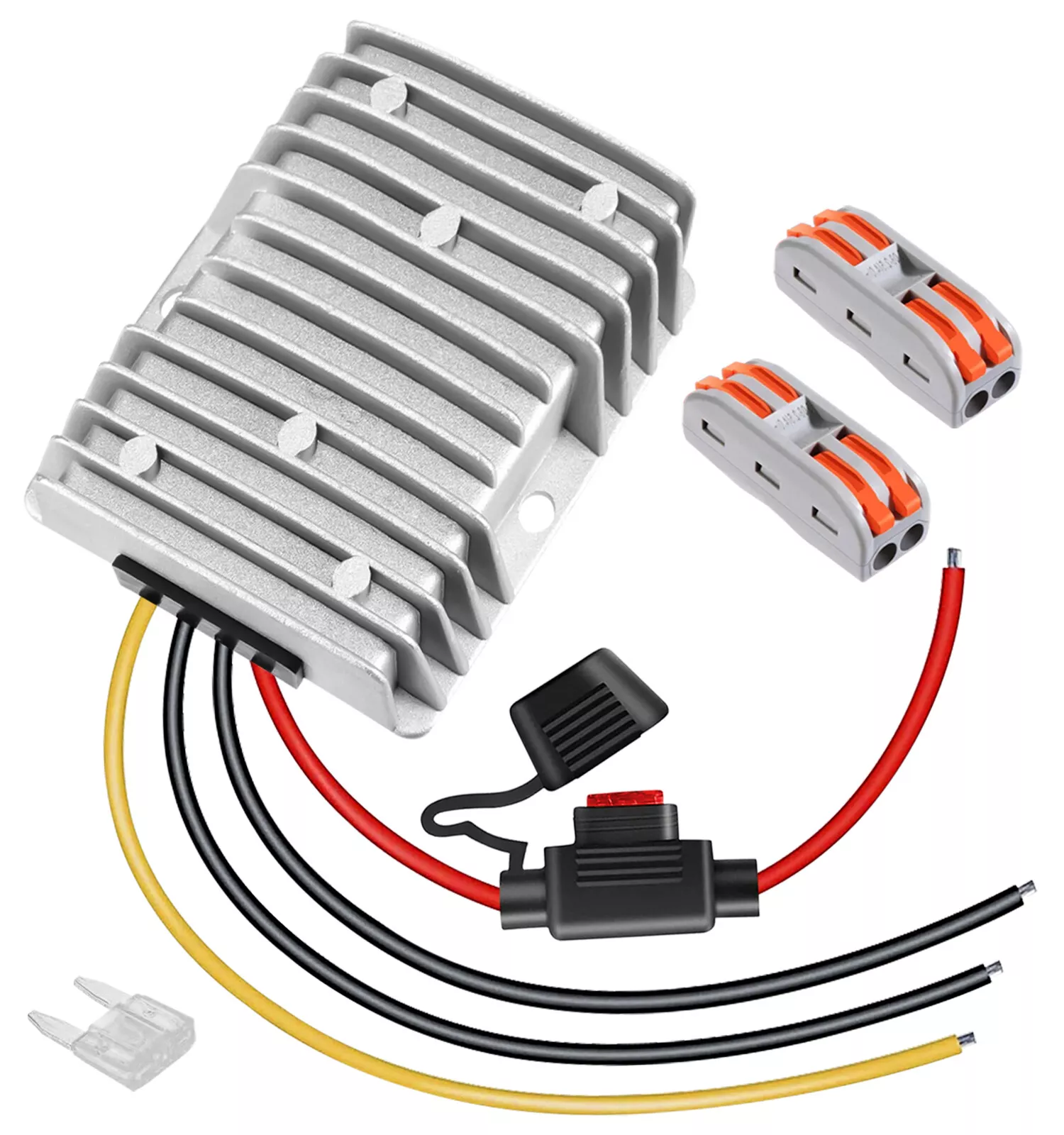

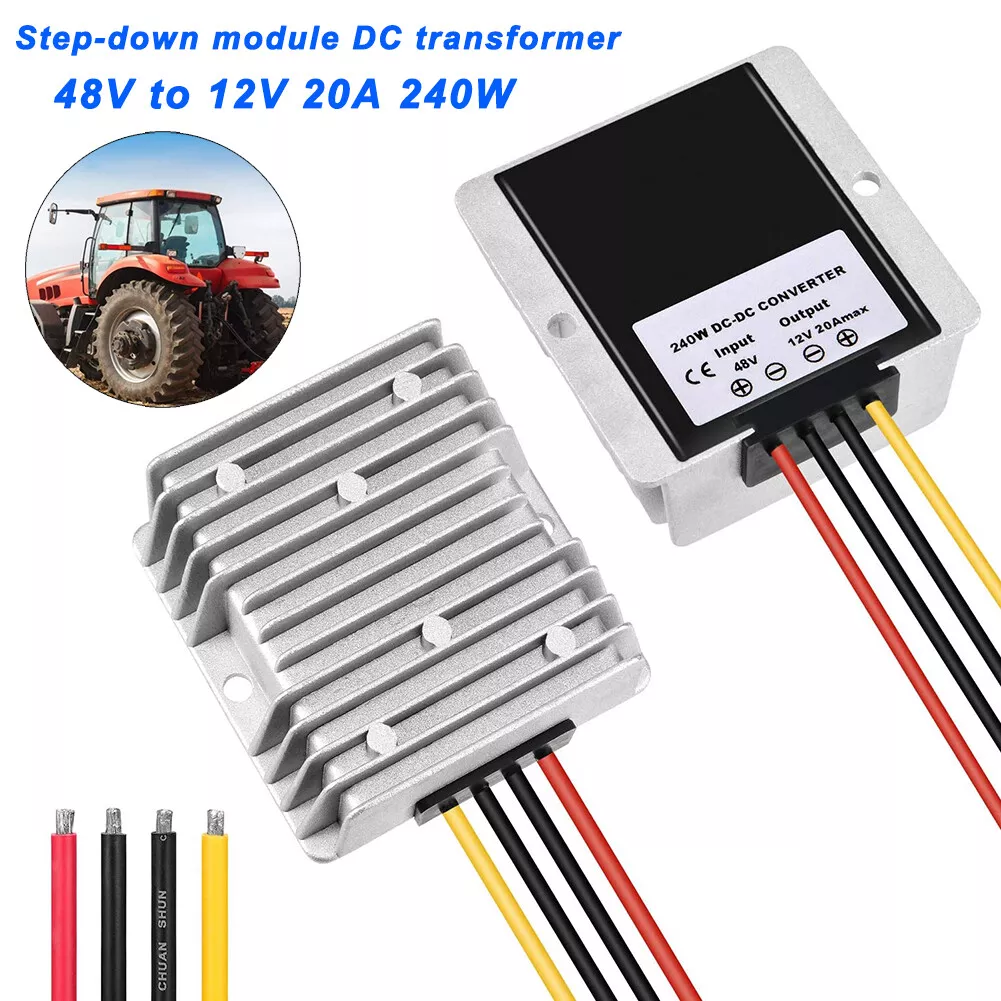

TRANSFORMER 48VDC to 12VDC STEP DOWN CONVERTER FOR 48V AUTOMOTIVES, NON-ISOLATED

Features

Wide input voltage from 38VDC to 56VDC

Stable output voltage is 12VDC

100% full rated power

100% full stable output Current

100% burn-in test

High efficiency

Waterproof sealed

Cooling by free air convection

Surface mountable

1 year warranty

Over current protection, Over voltage protection

Over temperature shutdown

Additional information

Shipping Weight 290 g
Shipping Dimensions 10 × 8 × 3 cm
Specifications

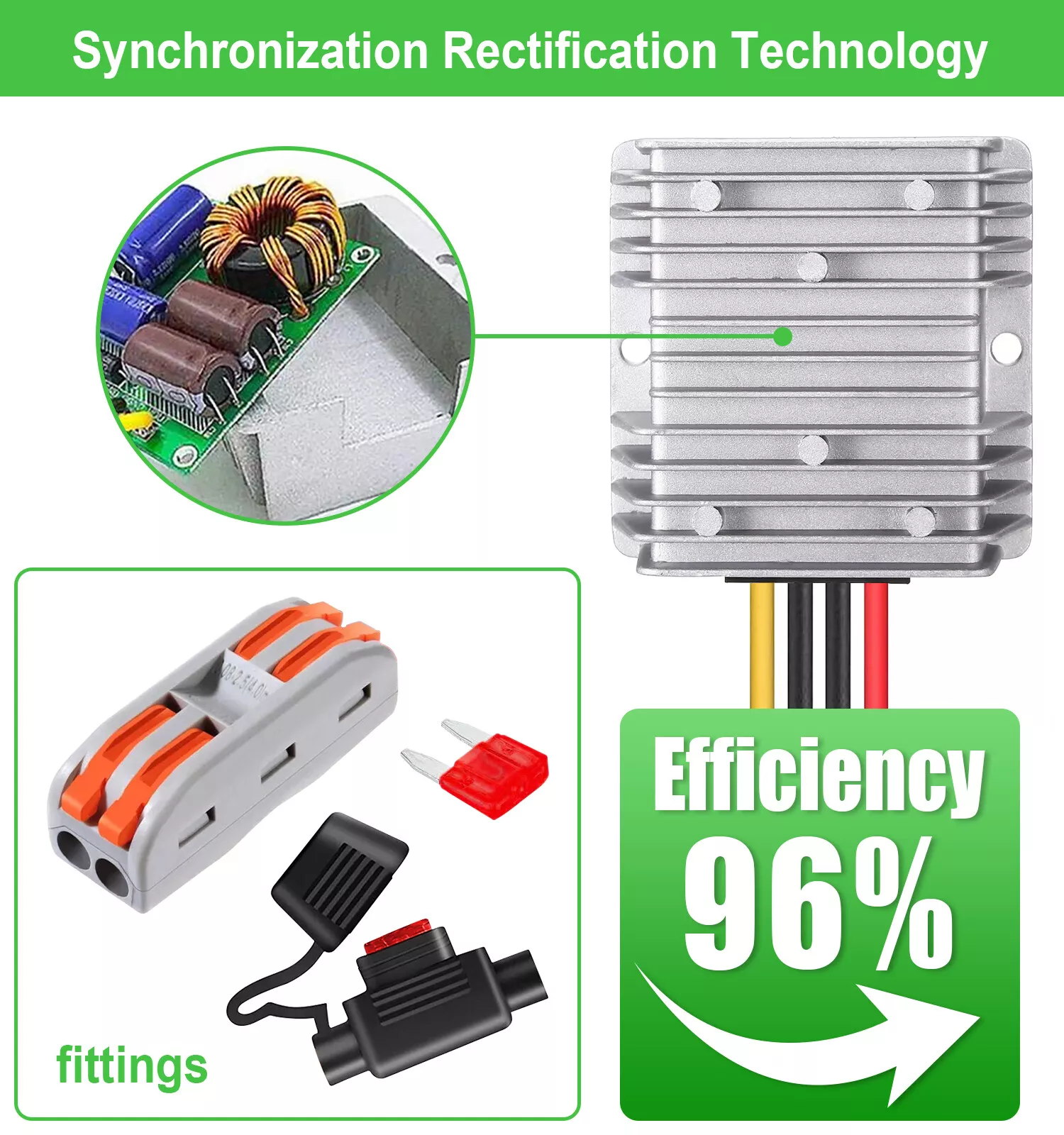

Efficiency – 95%

Input Voltage -38-56V DC

Output Voltage -12V DC

Output Current – 20A

Ripple – 400mVp

Line Regulation – ±0.2%

Load Regulation – ±0.2%

Voltage Accuracy – ±1.5%

Enclosures – IP67

Dimension – 74*74*31mm

Net Weight – 0.28kg

Operating Temperature – -40~75°C

Certificates – CE, ROHS

Warranty – One year
